DIN912 Allen Bolt—Full thread

DIN912 Allen Bolt—Full thread

Send email to us

Product Detail

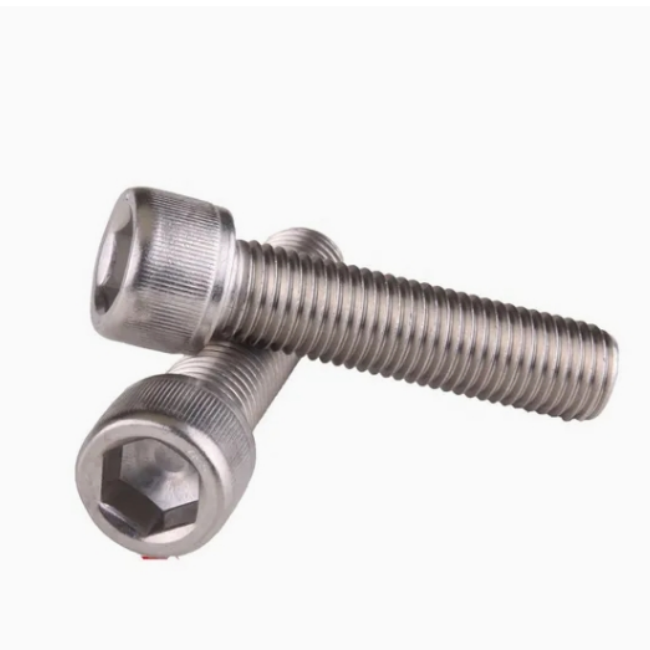

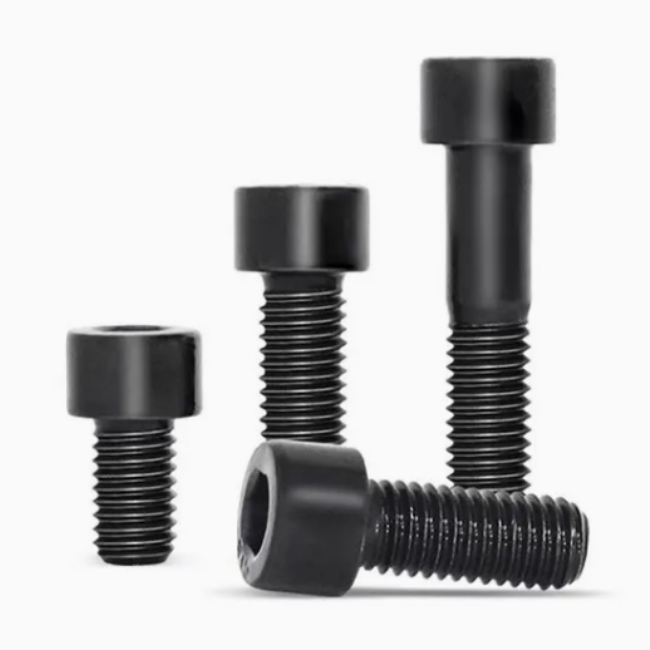

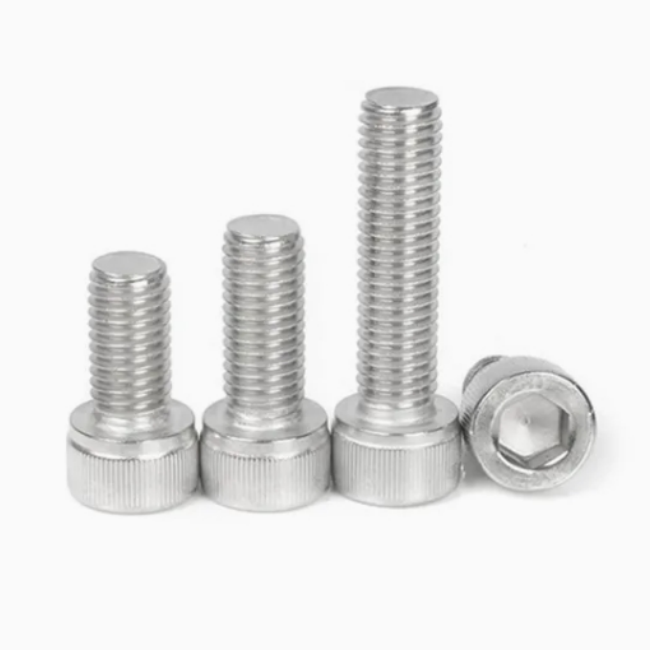

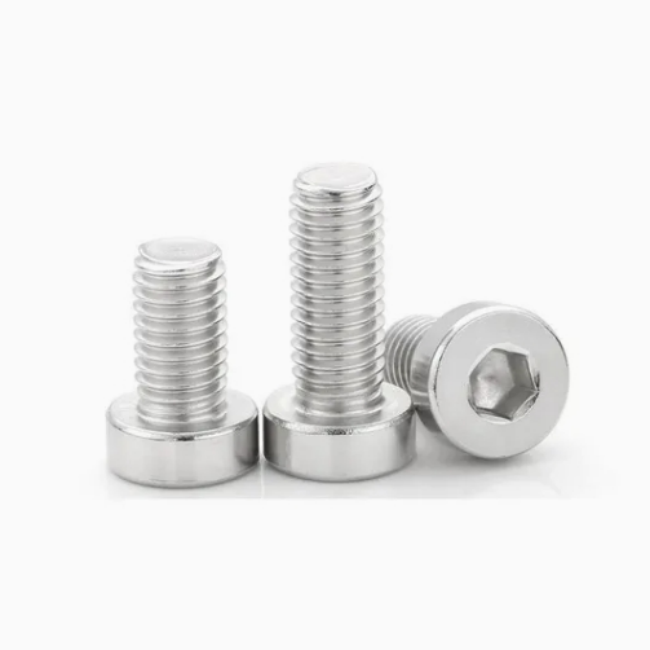

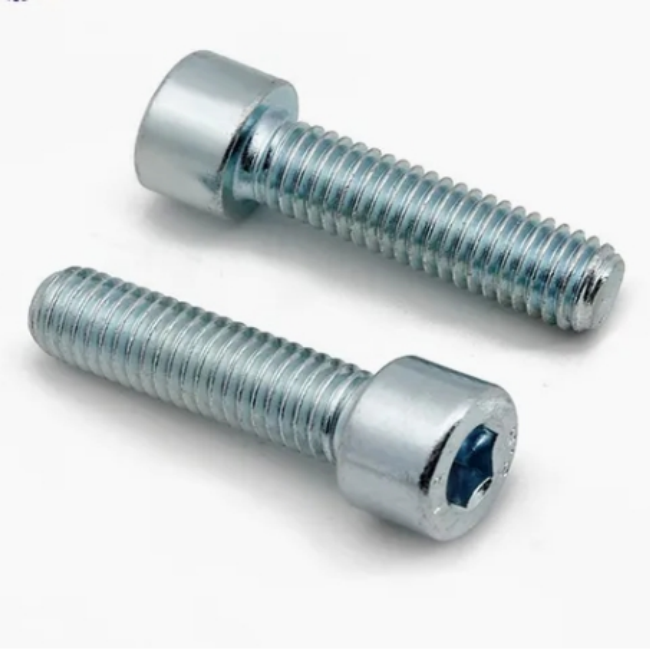

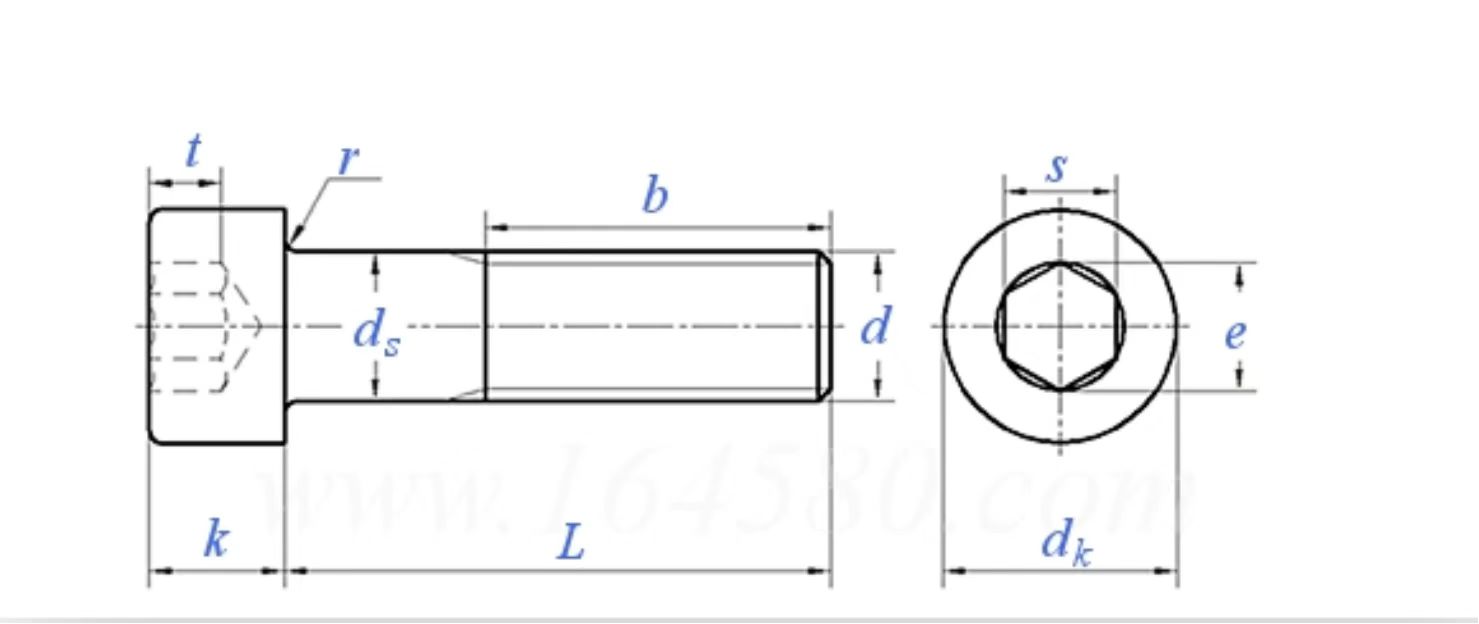

Product Specification

千件钢制重螺纹长度b

螺纹尺寸					M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20
d
P		螺距	粗牙		0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5
			细牙1		-	-	-	-	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5	1.5
			细牙2		-	-	-	-	-	-	-	-	-	1	1.5	-	-	2	2
dk		round head	max		2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27	30
		Knurled head	max		2.74	3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27	21.33	24.33	27.33	30.33
		max			2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67
da		max			1.8	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4
ds		max			1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20
ds		min			1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73	19.67
e		min			1.5	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16	16	19.44
k		max			1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20
k		min			1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.57	19.48
s		nominal			1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14	17
		min			1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.032	17.05
		max			1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.212	17.23
t		min			0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9	10
w		min			0.5	0.55	0.55	0.85	1.15	1.4	1.9	2.3	3	4	4.8	5.8	6.8	7.8	8.6

千件钢制重螺纹长度b

螺纹尺寸					(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
d
P		螺距	粗牙		2.5	3	3	3.5	3.5	4	4.5	5	5.5	6	6	6	6	6
			细牙1		1.5	2	2	2	2	3	3	3	4	4	4	4	4	4
			细牙2		2	-	-	-	-	-	-	-	-	-	-	-	-	-
dk		round head	max		33	36	40	45	50	54	63	72	84	96	108	120	135	150
		Knurled head	max		33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
		max			32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
da		max			24.4	26.4	30.4	33.4	36.4	39.4	45.5	52.6	63	71	79	87	97	107
ds		max			22	24	27	30	33	36	42	48	56	64	72	80	90	100
ds		min			21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
e		min			19.44	21.73	21.73	25.15	27.43	30.85	36.57	41.13	46.83	52.53	62.81	74.21	85.61	97.04
k		max			22	24	27	30	33	36	42	48	56	64	72	80	90	100
k		min			21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	55.26	63.26	71.26	79.26	89.13	99.13
s		nominal			17	19	19	22	24	27	32	36	41	46	55	65	75	85
		min			17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
		max			17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t		min			11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
w		min			9.4	10.4	11.9	13.1	13.5	15.3	16.3	17.5	19	22	25	27	32	34
