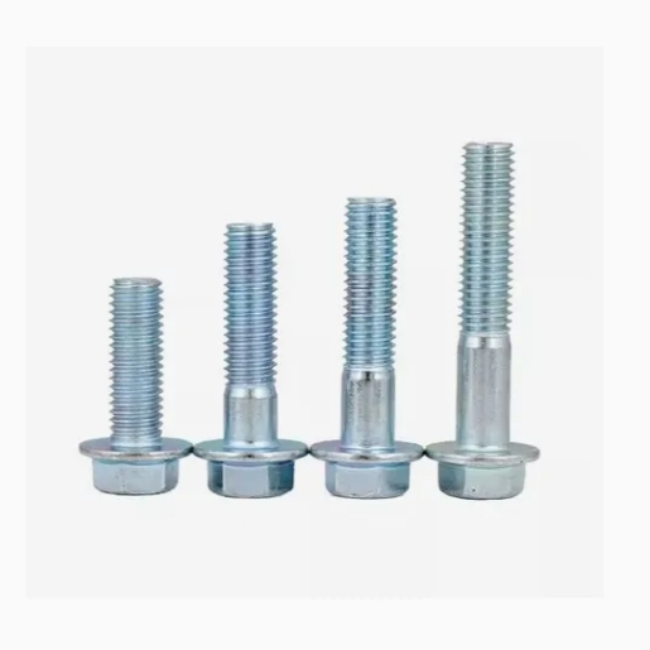

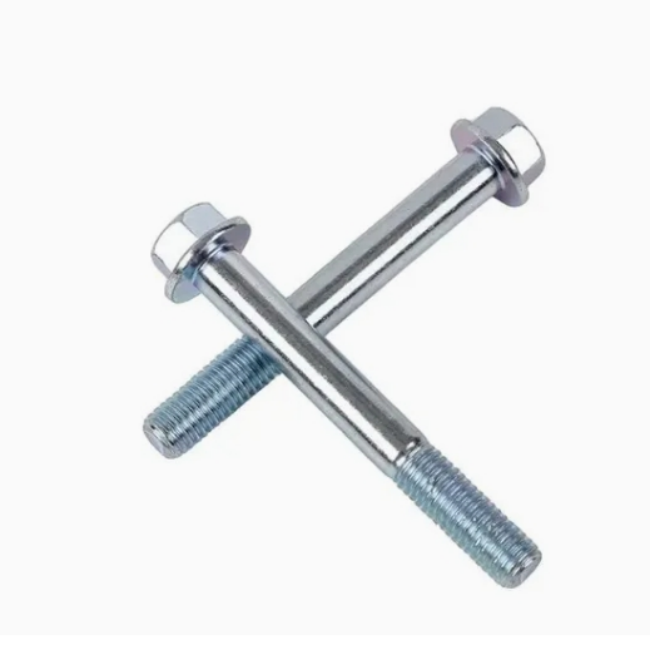

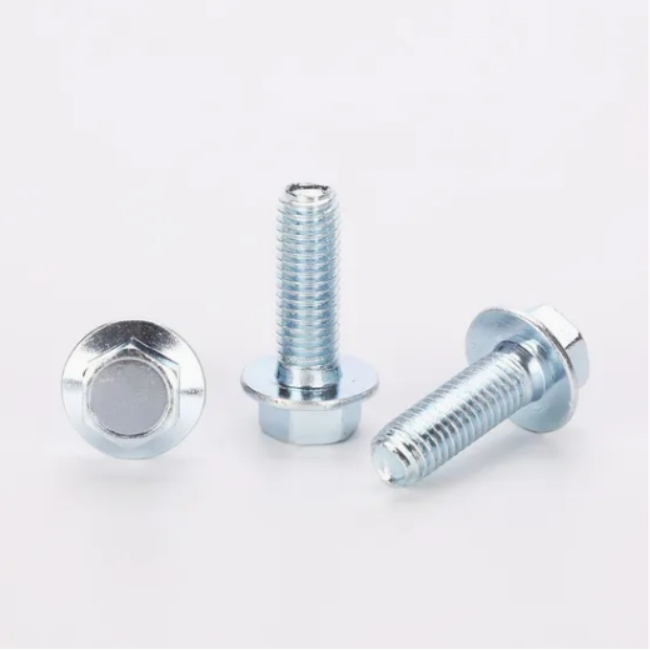

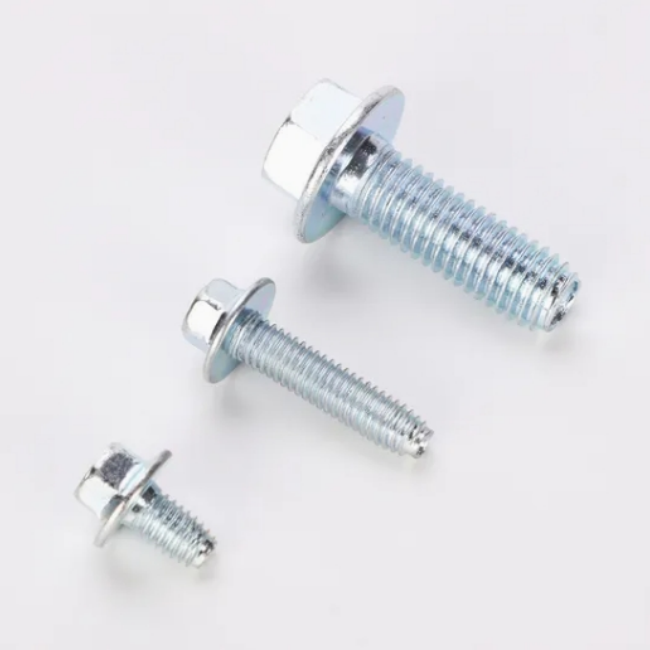

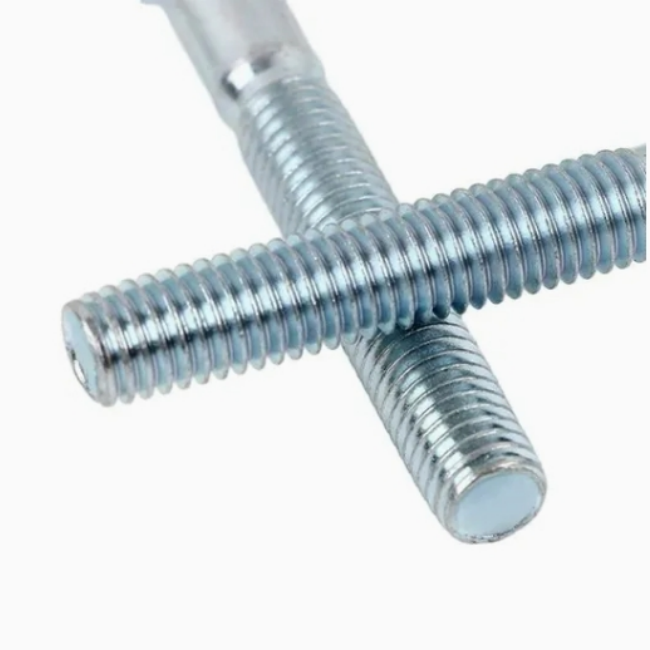

Flange Bolts consists of a bolt with a washer like flange under the head of the bolt. The flange can be serrated or non Serrated. Flange Bolts are used to various applications like- Automotive, Plumbing, Electronics and more. Non Serrated Flange bolts are also called Frame Bolts. Flange Bolts have a large bearing surface that distributes clamping force over an extended area, which allows them to be used in irregular and oversized holes.

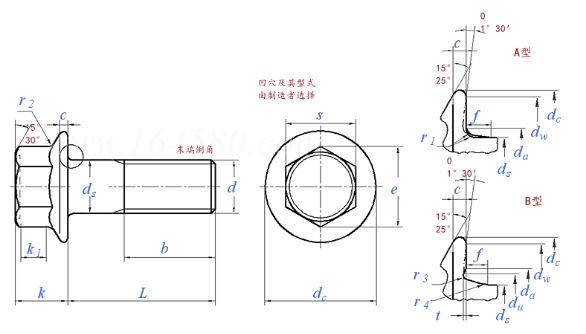

| thread specification | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||||
| d | ||||||||||||
| P | thread pitch | UNC | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | ||
| UNF1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| UNF2 | / | / | / | 1 | 1.25 | / | / | / | ||||
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 46 | |||
| 125＜L≤200 | / | / | 28 | 32 | 36 | 40 | 44 | 52 | ||||
| L＞200 | / | / | / | / | / | / | 57 | 65 | ||||
| c | Min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |||
| da | A | Max | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 | ||
| B | Max | 6.2 | 7.4 | 10 | 12.6 | 15.2 | 17.7 | 20.7 | 25.7 | |||
| dc | Max | 11.8 | 14.2 | 18 | 22.3 | 26.6 | 30.5 | 35 | 43 | |||
| ds | Max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |||
| Min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | ||||
| du | Max | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | 22 | |||
| dw | Min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |||
| e | Min | 8.71 | 10.95 | 14.26 | 16.5 | 17.62 | 19.86 | 23.15 | 29.87 | |||
| f | Max | 1.4 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | |||
| k | Max | 5.4 | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | 14.4 | 17.1 | |||
| k1 | Min | 2 | 2.5 | 3.2 | 3.6 | 4.6 | 5.1 | 5.8 | 6.8 | |||
| r1 | Min | 0.25 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | |||
| r2 | Max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 | |||
| r3 | Min | 0.1 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | |||
| r4 | ≈ | 3 | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | 6.4 | 8.5 | |||
| s | Maximum value = nominal | 8 | 10 | 13 | 15 | 16 | 18 | 21 | 27 | |||
| Min | 7.78 | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | 20.67 | 26.67 | ||||
| t | Max | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | 0.5 | 0.65 | |||
| Min | 0.05 | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | 0.25 | 0.3 | ||||
