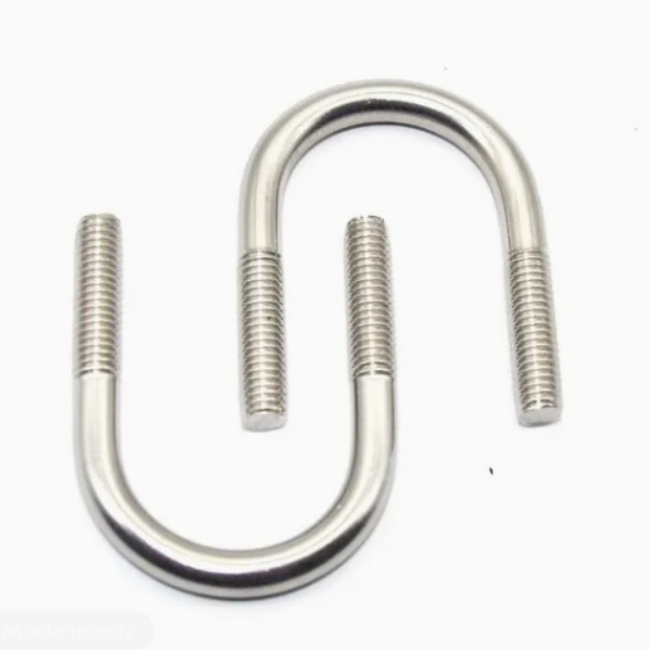

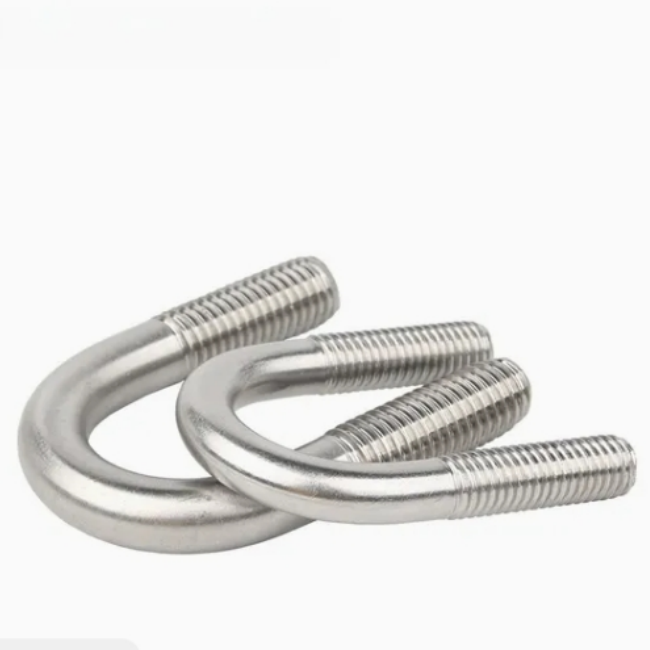

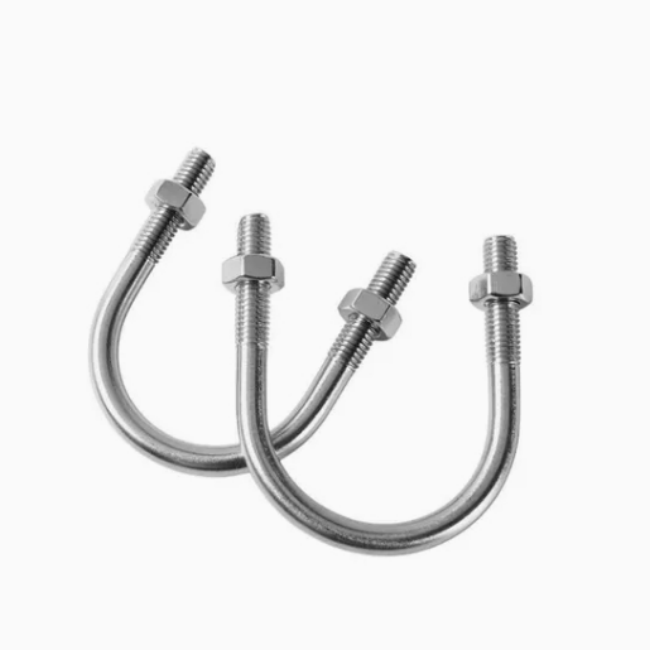

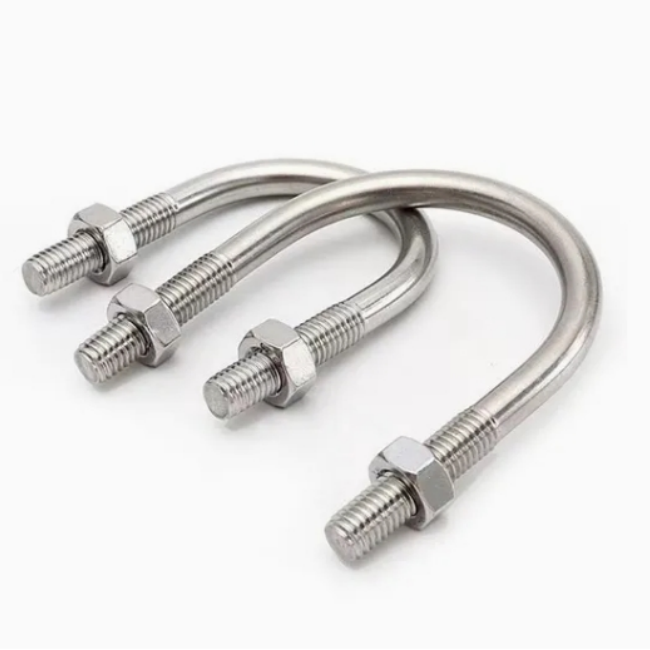

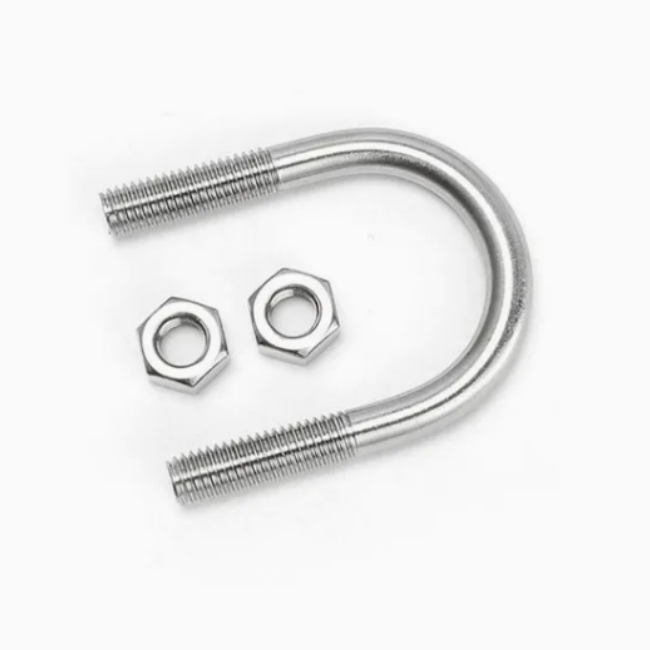

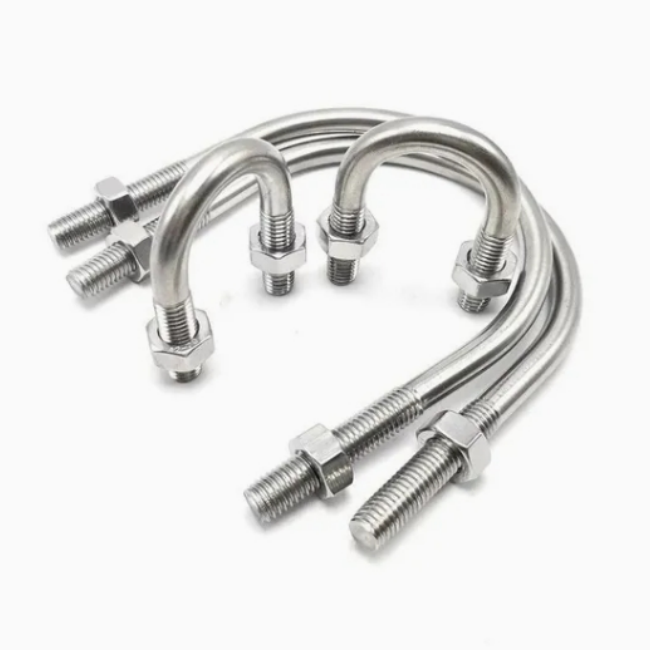

DIN3570 Stainless Steel Pipe Clamp U Bolt
Product Detail

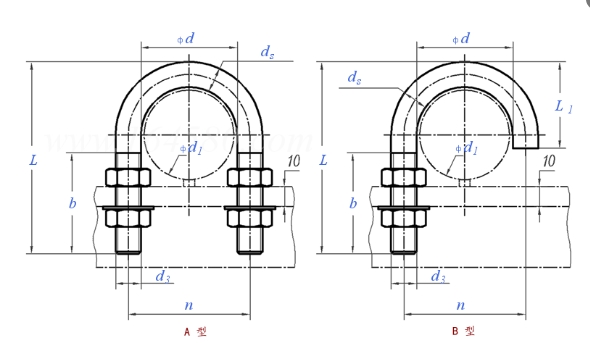

| nominal diameter | 30 | 38 | 46 | 52 | 64 | 82 | 94 | 120 | 148 |
| d | | | | | | | | | |
| d1 | | 25~26.9 | 30~33.7 | 38~42.4 | 44.5~48.3 | 57~60.3 | 76.1 | 88.9 | 108~114.3 | 133~139.7 |
| d1 | Applicable pipe size | metric thread | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 |
| d1 | inch thread | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | / |
| b ① | | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 60 | 60 |
| ds | | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 16 | 16 |
| d3 | | M10 | M10 | M10 | M10 | M12 | M12 | M12 | M16 | M16 |
| L ① | | 70 | 76 | 86 | 92 | 109 | 125 | 138 | 171 | 191 |
| L1 | | 28 | 31 | 37 | 40 | 49 | 57 | 66 | / | / |
| n | | 40 | 48 | 56 | 62 | 76 | 94 | 106 | 136 | 164 |
| kg | A | | 9.4 | 10.5 | 12 | 12.9 | 22.2 | 25.9 | 28.8 | 64 | 72.7 |
| B | | 6.8 | 7.7 | 9 | 9.7 | 16.8 | 19.8 | 22.4 | / | / |
| nominal diameter | 176 | 202 | 228 | 282 | 332 | 378 | 428 | 530 |
| d | | | | | | | | |
| d1 | | 159~168.3 | (191)~193.7 | 216~219.1 | 267~273 | 318~323.9 | 355.6~368 | 406.4~419 | 508~521 |
| d1 | Applicable pipe size | metric thread | 150 | -175 | 200 | 250 | 300 | 350 | 400 | 500 |
| d1 | inch thread | / | / | / | / | / | / | / | / |
| b ① | | 60 | 60 | 70 | 70 | 70 | 70 | 70 | 70 |
| ds | | 16 | 16 | 20 | 20 | 20 | 24 | 24 | 24 |
| d3 | | M16 | M16 | M20 | M20 | M20 | M24 | M24 | M24 |
| L ① | | 217 | 249 | 283 | 334 | 385 | 435 | 487 | 589 |
| L1 | | / | / | / | / | / | / | / | / |
| n | | 192 | 218 | 248 | 302 | 352 | 402 | 452 | 554 |
| kg | A | | 83.4 | 95.8 | 169.8 | 202.8 | 235 | 382 | 429 | 522 |
| B | | / | / | / | / | / | / | / | / |
