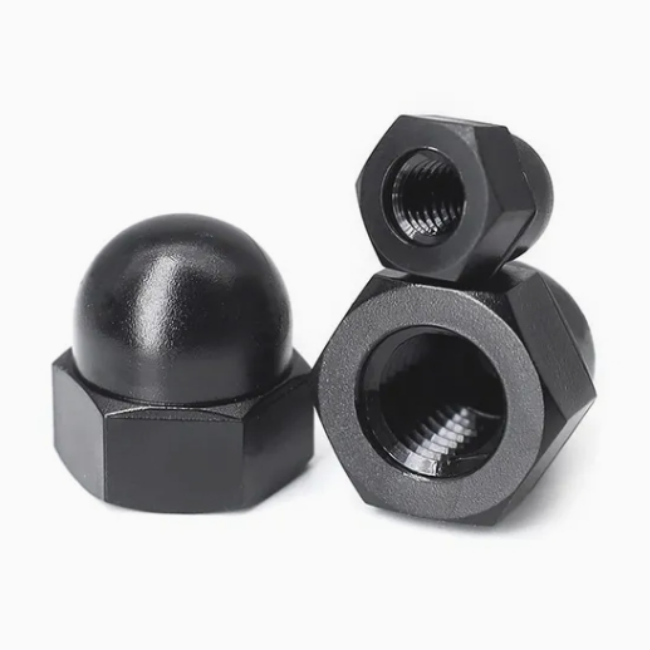

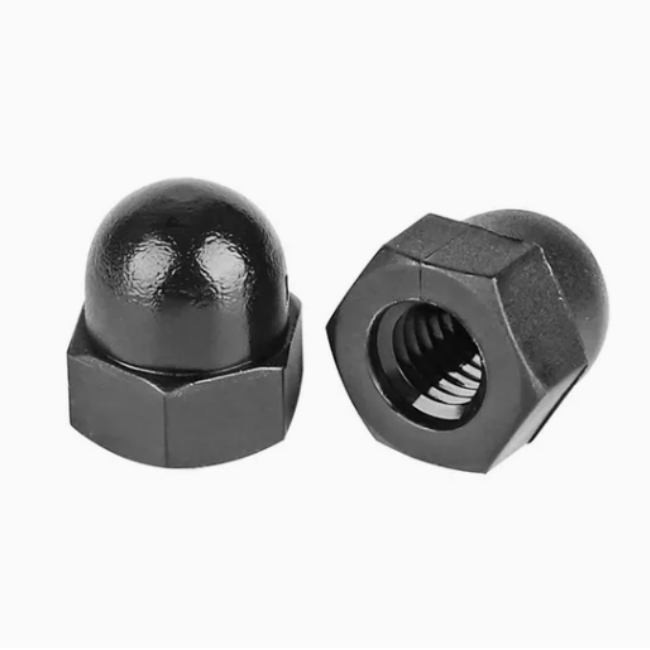

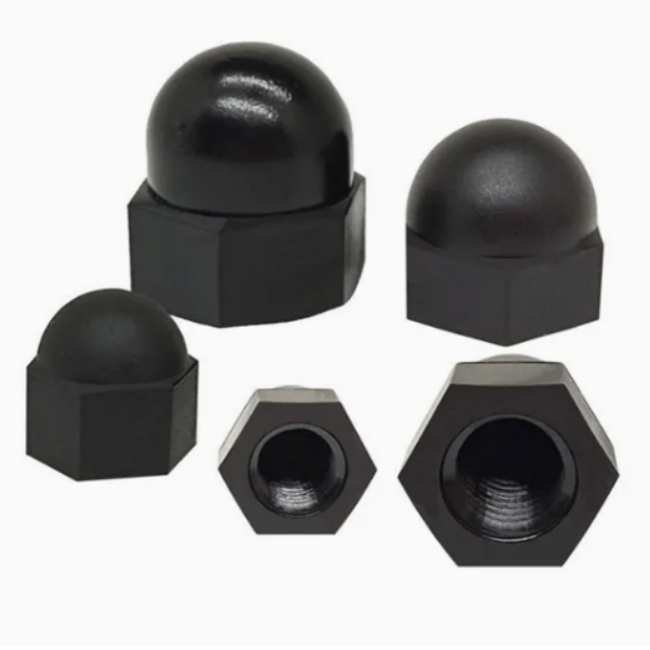

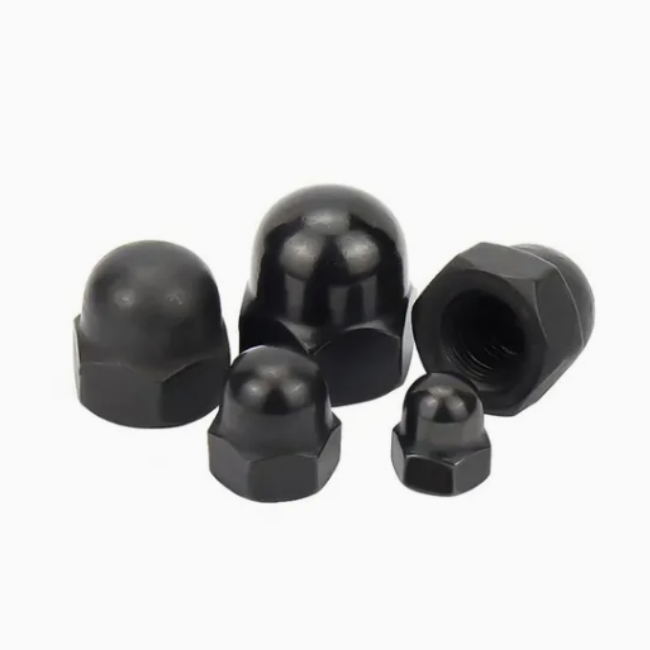

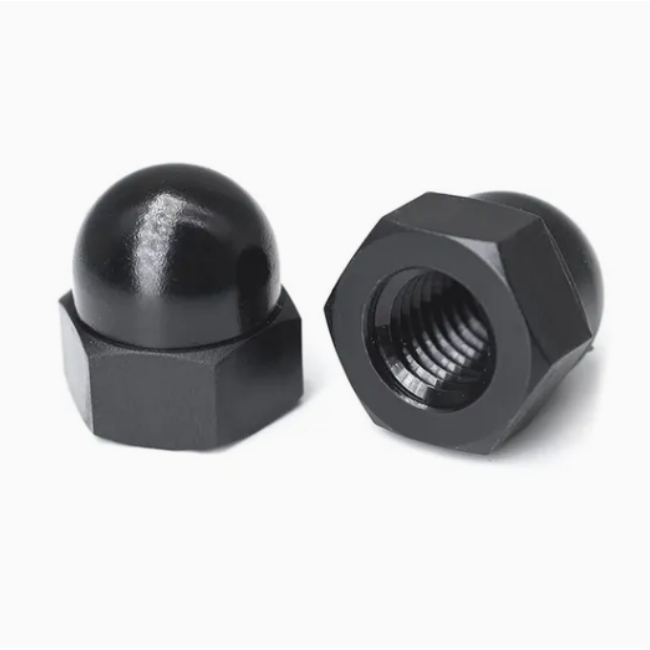

DIN1587 Hex Cap Nuts Plastic Nylon Acorn Nuts

DIN1587 Hex Cap Nuts Plastic Nylon Acorn Nuts

Send email to us

Product Detail

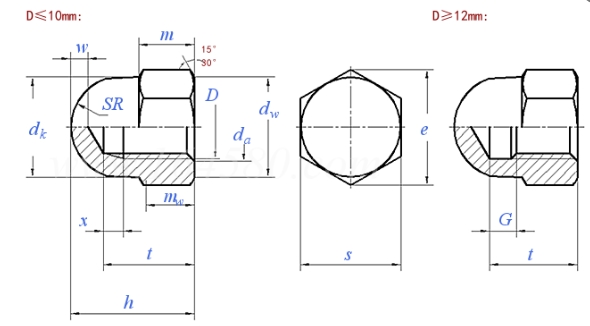

Product Specification

Acorn nuts (also known as Crown nut, cap nut, domed nut) has a domed end on one side. It is used to cover threaded ends.

螺纹规格					M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24
D
P		UNC			0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
		UNF1			/	/	/	1	1.25	1.5	1.5	1.5	2	2	2	2
		UNF2			/	/	/	/	1	1.25	/	/	1.5	1.5	1.5	/
da		Max			4.6	5.75	6.75	8.75	10.8	13	15.1	17.3	19.5	21.6	23.7	25.9
da		Min			4	5	6	8	10	12	14	16	18	20	22	24
dk		Max			6.5	7.5	9.5	12.5	15	17	20	23	26	28	33	34
dw		Min			5.9	6.9	8.9	11.6	14.6	16.6	19.6	22.5	24.9	27.7	31.4	33.3
e		A	Min		7.66	8.79	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98
e		B	Min		7.5	8.63	10.89	14.2	17.59	19.85	22.78	26.17	29.56	32.95	37.29	39.55
x		UNC	Max		1.4	1.6	2	2.5	3	3.5	4	4	5	5	5	6
x		UNF	Min		/	/	/	2	2.5	3	3	3	4	4	4	4
G		UNC	Max		2.75	3	3.7	4.9	5.6	6.4	7.3	7.3	9.3	9.3	9.3	10.7
G		UNF	Min		/	/	/	3.7	4.9	5.6	5.6	5.6	7.3	7.3	7.3	7.3
h		Maximum value = nominal			8	10	12	15	18	22	25	28	32	34	39	42
		A	Min		7.64	9.64	11.57	14.57	17.57	21.48	24.48	27.48	31.38	33.38	38.38	41.38
		B	Min		7.42	9.42	11.3	14.3	17.3	21.16	24.16	27.16	31	33	38	41
m		Max			3.2	4	5	6.5	8	10	11	13	15	16	18	19
m		Min			2.9	3.7	4.7	6.14	7.64	9.64	10.3	12.3	14.3	14.9	16.9	17.7
mw		Min			2.32	2.96	3.76	4.91	6.11	7.71	8.24	9.84	11.44	11.92	13.52	14.16
SR		≈			3.25	3.75	4.75	6.25	7.5	8.5	10	11.5	13	14	16.5	17
s		Maximum value = nominal			7	8	10	13	16	18	21	24	27	30	34	36
		A	Min		6.78	7.78	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38
		B	Min		6.64	7.64	9.64	12.57	15.57	17.57	20.16	23.16	26.16	29.16	33	35
t		MAx			5.74	7.79	8.29	11.35	13.35	16.35	18.35	21.42	25.42	26.42	29.42	31.5
t		Min			5.26	7.21	7.71	10.65	12.65	15.65	17.65	20.58	24.58	25.58	28.58	30.5
w		Min			2	2	2	2	2	3	4	4	5	5	5	6
kg		UNC			1.5	2.2	4.6	8.9	20.1	28.3	39.7	54.3	79.1	104	/	216
kg		UNF			/	/	/	11	20.1	28.3	39.7	54.3	95	104	/	216
